Parts for Parsun F5A/F6A - Lower casing and drive

Lower casing assembly (long)

Lower casing assembly (short)

Drive shaft assembly (long)

Drive shaft assembly (short)

Impeller dowel pin

Water pipe seal a

Water pipe seal b

Plain flat washer 6

Compatible with Yamaha 92995-06600

Compatible with Yamaha 6BX-44311-00

Water pump inner shell

Compatible with Yamaha 6BX-44322-00

Water pump impeller

Upper gasket. outer plate

Outer plate lower gasket

Compatible with Yamaha 93604-10M03

Water pump seat

Shift rod cam assembly (long)

Shift rod cam assembly (short)

GB/T879.2-1.5x12

O-ring 15.8x2.4

Shift rod guide bushing

Guide bushing seal b

Guide bushing plate

Hexagon bolt m6x16

Oil seal. water pump seat

Water pump seat gasket

Lower casing assembly

Hollow pin 7.5x10

Washer,locking 6

Hollow pin 9.5x10

Plain flat washer 8

Compatible with Yamaha 92995-08100

GB/T5782-M8x167

Partial-thread hexagon bolt m8x167

Partial-thread hexagon bolt m8x40

Compatible with Yamaha 90340-08M04

Gasket, gear box plug

Compatible with Yamaha 90430-08020

GB/T5782-M6x172

Partial-thread hexagon bolt m6x172

Raised countersunk (oval head) screw m6x20

Forward gear assembly

Propeller shaft assembly

GB/T879.1-3.5x28

Propeller shaft

Reverse gear washer

Reverse gear assembly

Lower casing cover assembly

JASO-F404-31-050

Compatible with Tohatsu 369-60111-0

Lower casing cover

Hexagon bolt m6x20

Propeller shaft cushion assembly

Propeller assembly 3-7.8"x9"

Propeller assembly 3-7.8"x 8.0"

Plain flat larger washer 10

Compatible with Yamaha 90171-10M01

Pin. cotter 3.2x18

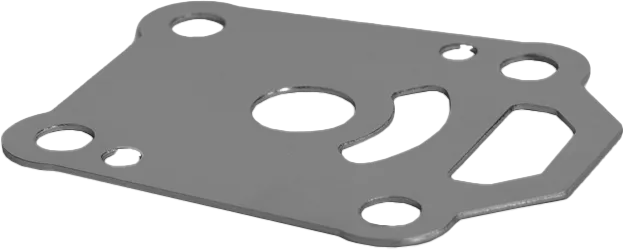

#️14 - T5-03000007 - Outer plate - F6A

Parsun Outer plate

Part Number: T5-03000007 (PAT5-03000007)
The part is used for engine models: Parsun F5A/F6A

Price: 45,03 €
In stock and ready for immediate dispatch from our warehouse in Sweden.

Outer plate

Sitting between the upper and lower outer-plate gaskets, this metal plate is one of the hard parts in the F5A/F6A water-pump stack.

It provides the correct face and support for the surrounding seals and is the right Parsun spare part when the original plate is worn, warped, or damaged during pump service.

Exploded Diagrams & Assemblies Containing T5-03000007

Parsun F6A - Lower casing and drive
